Maintains product quality 24/7 — so you can forget about temperature fluctuations.
Key features
LoRa is a low-power wireless platform and a core technology underpinning the Internet of Things (IoT). Boasts wide-area coverage and high signal penetration:
- Up to 2 km in open areas
- Up to 1 km in urban areas
In the area of mobile network coverage, UNITESS AMBIENT BRIDGE transmits the data (data on the vehicle location and transportation conditions) to the server in near real-time.
UNITESS AMBIENT BRIDGE combines both active and passive tracking opportunities. If the network is not available, the device stores data in internal memory and transmits stored data to the server once the network is available.
Once the vehicle is back in the park, it’s possible to print out a receipt with information about the transportation conditions.
In real-time mode, information can be viewed from a server connected to the internet.
THB2 sensors are installed in the vehicle according to the temperature map. The data is transmitted by radio channel to UNITESS AMBIENT BRIDGE and displayed on the screen in the driver’s cabin.

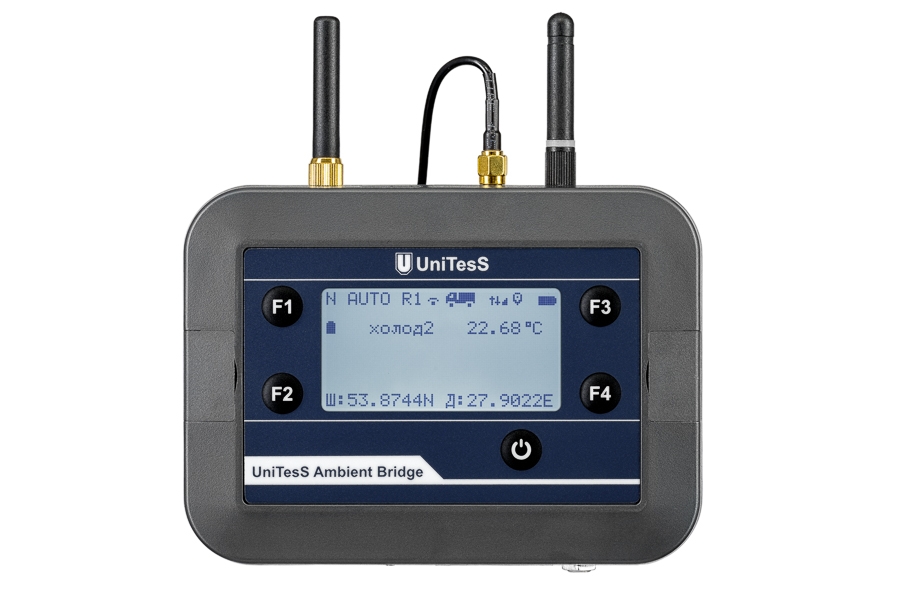

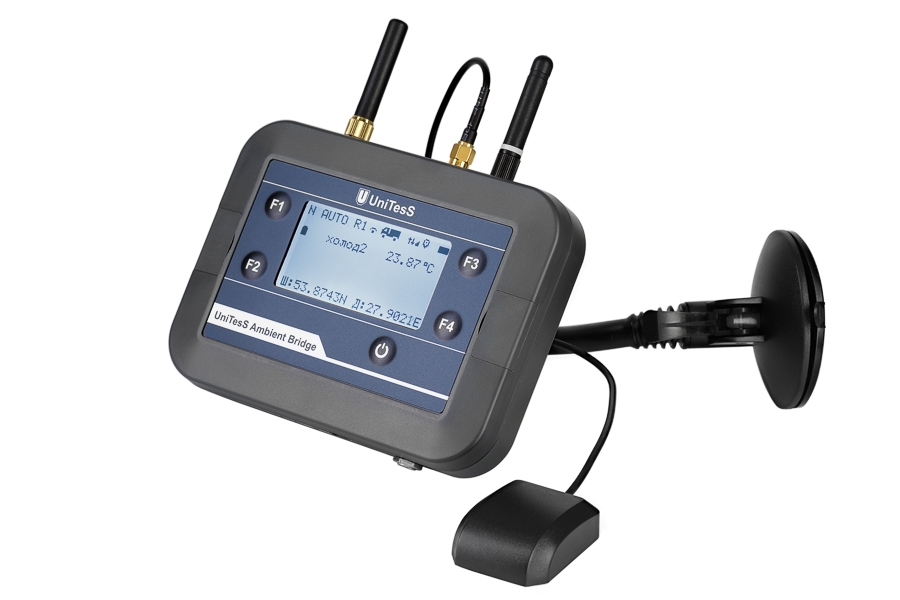

Technical characteristics of UNITESS AMBIENT BRIDGE
|
Рarameter |
Description |
|
DC supply voltage |
12..24 V |
|
Current consumption |
560 mA (at 12 V) 250 mA (at 24 V) |
| Maximum current consumption |
1000 mA |
|
Power consumption |
No more than 0.5 W |
| ISM radio frequency range for unlicensed band | 868 MHz |
|
LoRa receiver sensitivity |
No more than 148 dBm |
|
GPS receiver sensitivity |
No more than 166 dBm |
|
GSM bands |
GSM 850, EGSM 900, DCS 1800, PCS 1900 |
|
SIM card format |
Micro-SIM |
|
GSM power: |
Class 1 (DCS 1800 and PCS 1900): 1 W Class 4 (GSM 850 and EGSM 900): 2 W |
|
LoRa transmitter output power |
No more than 14 (25) dBm (mW) |
| Speed of GPRS connection | 85.6 kbit/s |
| Ingress protection code |
IP20 |
|
Data interface |
USB 2.0, GSM, ISM |
|
Dimensions |
150 х 118 х 27 mm |
|
Weight |
0.45 kg |
|
Battery life |
Up to 24h |
